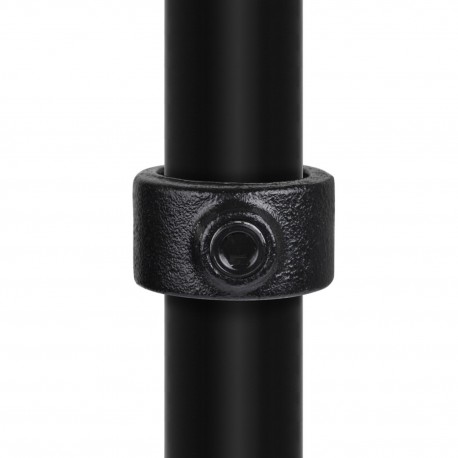

Locking Ring - Type 60D - 42,4 mm (Black)

Reference: 6080Z60D

Collar. Support fitting to increase slip resistance of fi ttings that are under high loads. Another big plus of the black coating is, that the color gets into the material really deeply, which prevents the connectors from corroding too quickly. The paintwork is not resistant to UV radiation and is therefore not suitable for outdoor use. The tubefittings are equipped with black colored stainless steel adjusting screws with cutting edge.

KLEMP Black adjusting ring, fastening ring, pipe connector safety device, including screws Typ 60BD - 42,4 mm / 1 ¼"

  • Collar. Support fitting to increase slip resistance of fi ttings that are under high loads. Another big plus of the black coating is, that the color gets into the material really deeply, which prevents the connectors from corroding too quickly. The paintwork is not resistant to UV radiation and is therefore not suitable for outdoor use. The tubefittings are equipped with black colored stainless steel adjusting screws with cutting edge.

  • SUPPLY: 1x Locking Ring - Type 60D - 42,4 mm (Black), Size D - 42,4 mm / 1 ¼", Weight: 0,14 kg.Type: Collar, Surface: Powder coated, BSP thread (ISO228/1), Screw size: 3/8” x 12,7 mm, Size in inches: 1 ¼”, Colour: Black, Equivalent in the Kee Safety (Kee Klamp)Kee Klamp 75-7

  • HIGH QUALITY TÜV Rheinland seal of approval for design, safety, quality - the pipe connectors have been approved by TÜV - a leading, independent research institute in Europe. Optimal corrosion protection - durable, stable and universally applicable

  • MULTIFUNCTIONALITY Various application possibilities. Free design of any constructions without welding or thread cutting, e.g. for shelves, railings, outlets, exhibition stand construction, play facilities, steel structures, handrails, railings, scaffolding. With pipe connectors it is easy and inexpensive to build diverse constructions. Check out our inspirations: https://pinterest.com/Tubefittings_eu/

Data sheet

Size mm
D (42,4 mm)
Size inches "
Surface
Powder painting
Colour
Black
TÜV Certificates
Yes
Weight
0,14
Amount in box
140
Equivalent in the Kee Safety (Kee Klamp)
Kee Klamp 75-7
Equivalent in the Interclamp / Key Clamp
179
Type
Collar
Kind of screw thread
BSP thread (ISO228/1)
Bolt size
3/8” x 12,7 mm
