Reference: 608020OE

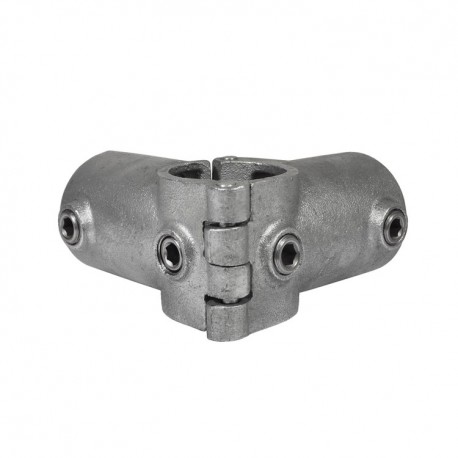

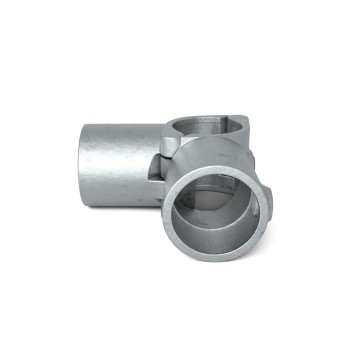

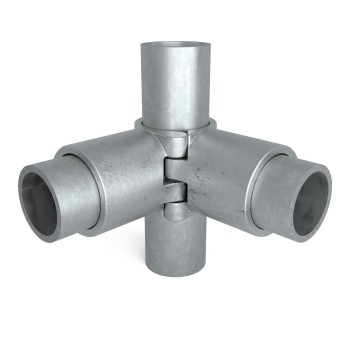

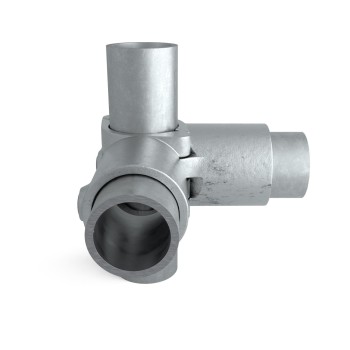

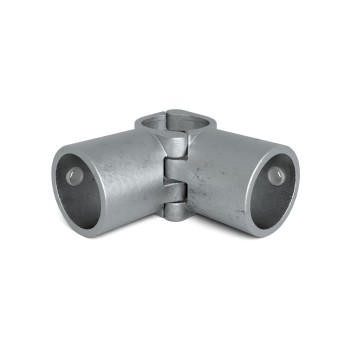

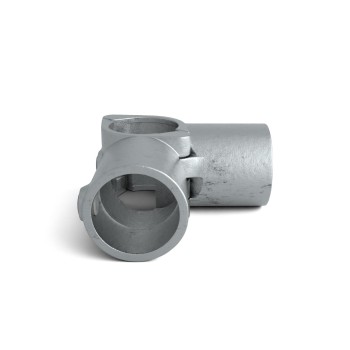

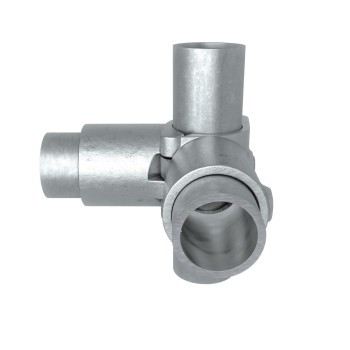

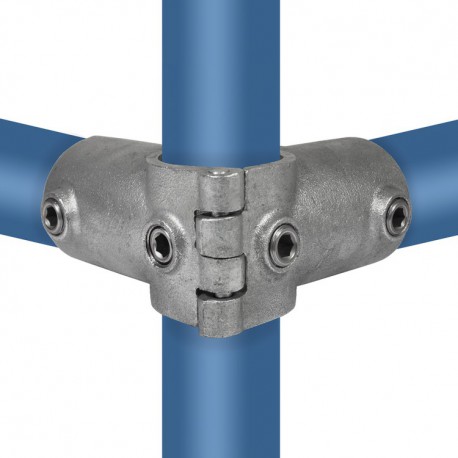

In stock - dispatch in 24hAdd-On Corner With Trough Tube 90°. Openable corner connection (90°), with the vertical tube running through the clamp.
Return to 30 days
Cheaper in a set
For every order over 200 EUR, we will plant a tree in your name. Read more
| Quantity | Discount | Unit price | Buy |
|---|---|---|---|
| 18 | 5% | €14.54 | |
| 36 | 7.5% | €14.15 | |
| 54 | 10% | €13.77 | |
| 72 | 15% | €13.01 |
The idea behind our KLEMP system is to produce fast and hassle-free pipe connections.
The fittings we developed ensure versatility, allowing you to build any structure.
A fastening screw with a hex key socket provides a secure and strong connection to the pipe. Stainless steel screws are also available on request.
Steel and aluminum pipes are commonly used as a structural element, and like all elements, they need to be connected.
What then is the first method that comes to your mind? Welding, right? However, before you opt for this solution....
Explore KLEMP fittings, which allow you to build all kinds of steel and aluminum pipe structures without the need for welding, specialised personnel, professional equipment or long lead times.
The KLEMP fitting system is your partner for the construction of safe balustrades, handrails, railings and many other structures both in industry and for private use. We supply pipes up to 300 cm in length, so making larger structures won't be a problem.
We have up to 600 distinct variants of fittings available. 75 types with 8 different diameters and 3 coating options. Such a wide assortment guarantees that you will find a fitting that is suitable for your structure and that you will complete the construction without using any specialised tools.
KLEMP fittings are TÜV approved, which means you can be sure of their of safety and durability. Also, they are made of hot-dip galvanised cast iron, which makes them highly corrosion- resistant and durable.
You install and remove KLEMP pipe fittings with an allen wrench.
They are held in place by allen screws. This allows you to implement any design you want, no matter how complex.
Whether you’re dealing with galvanised steel or aluminum pipes – our wide range of pipe fittings means that nearly anything is possible, as long as the right diameter is maintained.
Simple construction and quick assembly also translate to significantly reduced costs of labour.
What makes our company stand out is the fact that we have more than 10 years of experience in providing the best pipe and pipe fitting solutions to both individual and business customers.
Our qualified team of experts can advise you on the best solutions. We also provide support for your projects and we are always happy to answer any questions you have.
Returns and Exchanges - Stress-Free!
We believe you will be delighted with your purchase, but we understand that sometimes things don't meet expectations. If, for any reason, you want to return a product, we want you to know that it's important to us, and we aim to make it as easy as possible.
You have 14 days to withdraw from the contract without giving any reason. Simply contact us at info@tubefittings.eu to inform us of your decision. There's no need to fill out any complicated forms, although a template is available if you prefer to use it.
Note: Please remember that products made specifically to your order, tailored to your dimensions or specifications, are an exception to this rule. Due to their unique nature, we cannot accept returns unless they are defective. We hope you understand that such products are made especially for you and cannot be easily offered to other customers.
We hope that our flexible return policy will make your shopping experience even more pleasant. Thank you for your trust and choosing our shop!
Design efficiently with KLEMP! We offer access to a database of CAD / 3D / STP models of our KLEMP connectors. With the available .stp files, you can easily integrate KLEMP connectors into your engineering projects.
We also encourage you to download our complete product catalog to have a comprehensive overview of our available solutions.
Tubefittings are made of cast iron. They come in galvanized, raw and powder-coated versions.
All tubefittings are marked with a size that corresponds to the dedicated tube diameter. For example, in the case of D - 42 mm tubefittings, the diameter of the tube dedicated is 42 mm. It is worth noting that each tubefitting features a certain clearance, as the tube is assembled inside the tubefitting with the use of a dedicated set screw. Therefore, a slightly smaller or larger tube should be about fine.
Yes, a small additional clearance (1-2 mm) can be compensated by a set screw being screwed into the tubefitting. Such clearance does not affect the stability of the final structure.
For external use, we recommend the use of galvanized (silver) fittings. Tubefittings in black paintwork are powder coated, but they are not covered with a zinc layer, so we cannot give a 100% guarantee for long-term weather resistance. Natural tubeclamps, on the other hand, do not have any coating, they are raw. Natural tubeclamps are easy to paint or they can be used in highly designer projects in which the customers want to achieve the effect of rust and corten steel.
We do not provide this service ourselves, but you can paint the fittings yourself (preferably powder coating). For better corrosion resistance, we recommend powder coating of galvanized fittings.
Galvanized fittings are hot-dip galvanized, which ensures appropriate thickness and durability of the coating
Yes, all tubefittings are supplied with set screws as standard. If necessary, they can also be ordered separately.
Each set screw in a tubefitting can bear a shear load of about 600 kg per piece at a tightening torque of 40 Nm.
We will be happy to answer all your questions and help you make a decision, but we take no responsibility for the safety of the structure.
Tubefittings are supplied as standard with set screws, which can be tightened firmly with the use of an appropriate hex key.
Tubefittings are clamped on the tube with the use of a set screw screwed-into.
The following hex keys fit the given sizes of the tubefittings:
This is due to the fact that the tubes may have a minimum tolerance of inner and outer diameter. This also applies to tubefittings. Since the tubefittings are made of cast iron and then hot-dip galvanized, there may be a slight difference between them. This difference is ultimately necessary to ensure that the tube and tubefitting can be connected. This clearance does not affect the strength of the structure.
