- On sale!

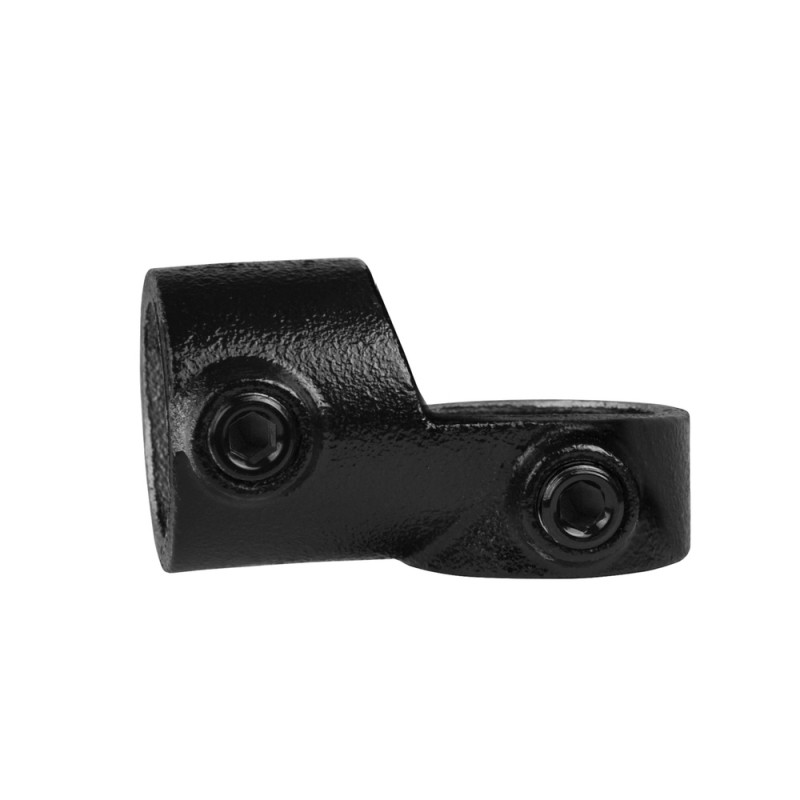

Adjustible Swivel TeeTyp 49B, 26,9 mm, Black
Reference: 6080Z49B In stock - dispatch in 24h
Equivalent in Kee Safety (Kee Klamp): Kee Klamp 19-5
Equivalent in Interclamp / Key Clamp: 148
Equivalent in Kee Safety (Kee Klamp): Kee Klamp 19-5
Equivalent in Interclamp / Key Clamp: 148
- Size mm
- B (26,9 mm)
- Type symbol
- Typ 49
- Size "
- TÜV certified
- Number of Pieces in Collective Packaging
- Equivalent in Kee Safety (Kee Klamp)
- Kee Klamp 19-5
- Equivalent in Interclamp / Key Clamp
- Corner piece
- Screw Thread Type
- BSP thread (ISO228/1)
- Screw Size
- 1/4" x 12,5 mm
|Average delivery times to Germany and Austria||Average delivery times to other European countries||Shipping company|
|Pipe connectors||2 to 3 working days*||3 to 5 working days*||DPD / GLS / UPS|
|Pipes up to 120 cm||3 to 5 working days*||4 to 7 working days*||DPD / GLS / UPS|
|pipes 120-220 cm||4 to 6 working days*||4 to 7 working days*||Mainfreight|
|Pipes 220-300 cm||5 to 7 working days||4 to 7 working days*||Mainfreight|
* Because it is difficult to estimate the workload in our warehouse and carriers, the delivery time is an estimate. Due to delays in some payment methods, such as bank transfer and instant bank transfer, delivery time may be extended with a few business days. We cannot guarantee the delivery times.
Are you in a hurry? Please contact us. We will see what we can do for you
For over ten years, we have been one of the most reliable partners throughout Germany and Europe when it comes to your projects with pipes and pipe connectors. You will find a comprehensive selection of various steel pipe connectors in our online store, all of which are of course TÜV-certified.
Our pipe connectors have a diameter of 21.3 mm, which are perfect for particularly strong connections with a screw load of six hundred kilograms at a torque of 40Nm. In this case, the pipe connectors are fixed by an Allen screw. In this way, any desired construction, whether sophisticated or rather simple, can be perfectly realized - the possibilities are almost endless, as the selection of different types of pipe connection makes almost anything possible, it does not matter whether you are working with aluminum pipes or galvanized steel pipes, as long as the appropriate diameter is maintained.
Take a look around our site to get a good idea of what is possible with pipe connectors.
Our comprehensive assortment offers not only steel tubes, aluminum tubes and TÜV-approved tube connectors, you will also find a wide range of hooks, clamps and swivels as well as various connectors ( tubeclamps, fittings, etc.) for your project.
We deliver directly to private and business customers through our online store.
If you have any questions or something is unclear, please do not hesitate to contact us.
Corporate clients / B2B clients
Our services are used by large companies known throughout the country and Europe.
We have great logistic capabilities.
We carry out deliveries to companies and offer wholesale prices for larger orders.
We know that as wholesalers and intermediaries you need the lowest prices and special treatment - the fastest possible delivery date and perfect quality.
That is why we have created a special offer for companies to meet these requirements.
Prices and discounts
The shopping cart in the store calculates a quantity discount depending on the number of ordered products.
You can find information about discount thresholds next to each product.
Large orders are negotiated individually (in that case please send your request to our e-mail address).
Invoices and intra-community deliveries
You will always receive an invoice from us for each order.
For business customers there is a possibility to place an order on the basis of a reverse charge. If the order is placed for a German company, for example, the VAT identification number must be provided before the order is placed (by registering the customer account).
The system will then apply a zero VAT rate.
Companies can also order from us on account (after approval) and are entitled to discounts for larger orders.
Business customers can apply for a credit purchase - an invoice with a deferred payment date. Deferred payment is available only from the second order. The first order must be paid in advance.
Please send us an e-mail. We will then perform a credit and business check.
After the approval it is possible to make a deferred payment (under certain conditions).
Do you need help with your project? Thanks to our extensive knowledge and experience, we are also happy to assist business clients in planning their projects. Would you like to order a custom advertising frame, need pipe racks in your warehouse? We are ready to help you with that.
Would you like to receive a quote for your project? Simply request a quote using the contact form or send an e-mail to firstname.lastname@example.org.
About the system
Why KEMP couplings?
Steel and aluminum pipes have been used as a construction element for many years. They are durable, have no sharp edges and are readily available anywhere in the world. The problem with using steel and aluminum tubing to build various structures is the issue of connections. Threaded pipe must be delivered to the job site in a precisely defined size and offers virtually no flexibility in installation. Welding requires skilled personnel, is a complicated and time-consuming process, and requires specialized equipment.
From simple protection of platforms or walkways in workplaces to safe railings in the harsh environment of harbor quays, bridges or canals. The KLEMP pipe connection system offers complete solutions that allow you to carry out such projects.
From simple protection of platforms or walkways at workplaces to safe railings in the harsh environment of harbor quays, bridges or canals. The KLEMP pipe connection system offers complete solutions that allow you to carry out such projects.
Central to the design principles of the KLEMP system is the principle of realizing a quick and easy connection of pipes. Our connectors provide the versatility to build any design. The KLEMP system consists of cast iron, galvanized connectors. We have developed a wide range of connectors in six different sizes. The hexagon socket clamping screw provides a secure and tight connection to the pipe. Stainless steel screws are available upon request.
KLEMP pipe couplings are easy to assemble and disassemble with an Allen wrench, reusable.
The pipe couplings are fixed with a hexagon socket screw. In this way, any desired design can be perfectly realized, whether it is complex or rather simple - the possibilities are almost unlimited, as the choice of different types of pipe connections means that almost anything is possible, whether you are working with aluminum or galvanized steel pipes, as long as the correct diameter is maintained.
Thanks to the simple design, our connectors allow for very quick assembly, which significantly reduces labor costs.
Discover our complete range of tube fittings and tubes in our exclusive catalog, prepared especially for you. Click on "Download" and you will receive it from us immediately.Pobierz
Choice of connectors
In our offer you will find round connectors with diameters of 21.3 mm, 26.9 mm, 33.7 mm, 42.4 mm, 48.3 mm, 60.3 mm
Why with us?
For more than ten years, we have been one of the most reliable partners in Germany and Europe when it comes to projects involving pipes and pipe fittings. In our online store you will find a wide range of different steel tube fittings.
Through our online store we deliver directly to private and business customers.
If you have any questions or uncertainties, please feel free to contact us.
Our services are used by large companies known throughout the country and Europe. We have great logistic possibilities.
Do you need help with your project? Thanks to our extensive knowledge and experience, we are happy to assist business clients in planning their projects. Do you want to order an advertising rack to order, do you need tubular racks in your warehouse? We are ready to help you with it.
Let us inspire you!
- Size A = (21.3 mm diameter fitting)
- Size BC = (fittings with a diameter from 26.9 mm to 33.7 mm)
- DEF size = (fittings with a diameter from 42.4 mm to 60.3 mm)
- - 21.3 - G 1/8" x 10 mm BSP
- - 26.9 and 33.7 - G 1/4" x 12.5 mm BSP
- - 42.4/48.3 and 60.3 - G 3/8" x 12.7 mm 19 BSP
Tubefittings are made of cast iron. They come in galvanized, raw and powder-coated versions.
All tubefittings are marked with a size that corresponds to the dedicated tube diameter. For example, in the case of D - 42 mm tubefittings, the diameter of the tube dedicated is 42 mm. It is worth noting that each tubefitting features a certain clearance, as the tube is assembled inside the tubefitting with the use of a dedicated set screw. Therefore, a slightly smaller or larger tube should be about fine.
Yes, a small additional clearance (1-2 mm) can be compensated by a set screw being screwed into the tubefitting. Such clearance does not affect the stability of the final structure.
For external use, we recommend the use of galvanized (silver) fittings. Tubefittings in black paintwork are powder coated, but they are not covered with a zinc layer, so we cannot give a 100% guarantee for long-term weather resistance. Natural tubeclamps, on the other hand, do not have any coating, they are raw. Natural tubeclamps are easy to paint or they can be used in highly designer projects in which the customers want to achieve the effect of rust and corten steel.
We do not provide this service ourselves, but you can paint the fittings yourself (preferably powder coating). For better corrosion resistance, we recommend powder coating of galvanized fittings.
Galvanized fittings are hot-dip galvanized, which ensures appropriate thickness and durability of the coating
Yes, all tubefittings are supplied with set screws as standard. If necessary, they can also be ordered separately.
Each set screw in a tubefitting can bear a shear load of about 600 kg per piece at a tightening torque of 40 Nm.
We will be happy to answer all your questions and help you make a decision, but we take no responsibility for the safety of the structure.
Tubefittings are supplied as standard with set screws, which can be tightened firmly with the use of an appropriate hex key.
Tubefittings are clamped on the tube with the use of a set screw screwed-into.
The following hex keys fit the given sizes of the tubefittings:
This is due to the fact that the tubes may have a minimum tolerance of inner and outer diameter. This also applies to tubefittings. Since the tubefittings are made of cast iron and then hot-dip galvanized, there may be a slight difference between them. This difference is ultimately necessary to ensure that the tube and tubefitting can be connected. This clearance does not affect the strength of the structure.
