Handrail wall bracket - Type 34C - 33,7 mm Klemp 608034C Round Tubefittings
  • On sale!
Handrail wall bracket - Type 34C - 33,7 mm Klemp 608034C Round Tubefittings Handrail wall bracket - Type 34C - 33,7 mm Klemp 608034C Round Tubefittings Handrail wall bracket - Type 34C - 33,7 mm Klemp 608034C Round Tubefittings Handrail wall bracket - Type 34C - 33,7 mm Klemp 608034C Round Tubefittings Handrail wall bracket - Type 34C - 33,7 mm Klemp 608034C Round Tubefittings Handrail wall bracket - Type 34C - 33,7 mm Klemp 608034C Round Tubefittings

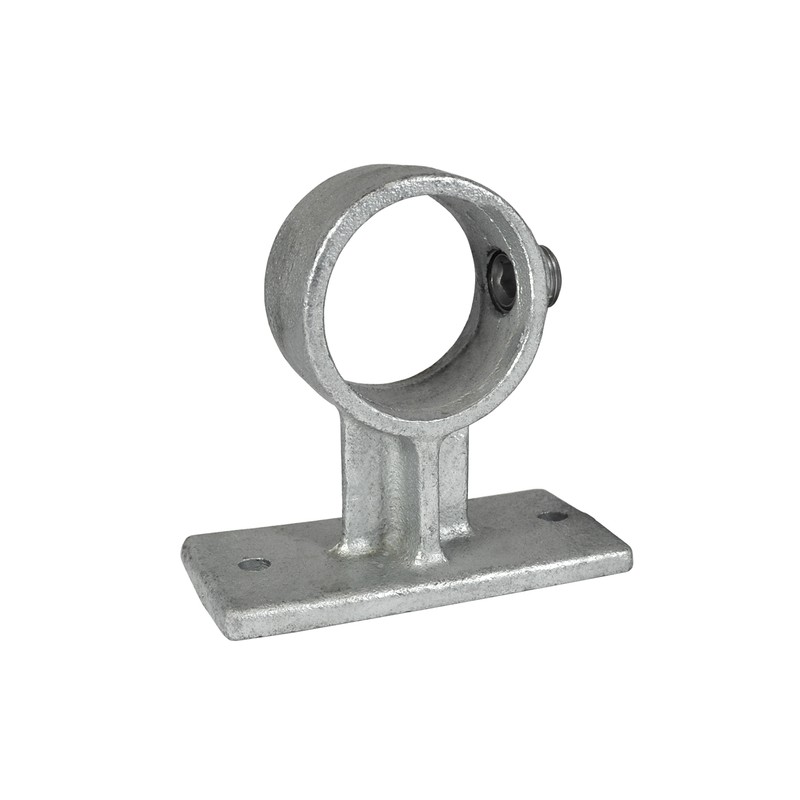

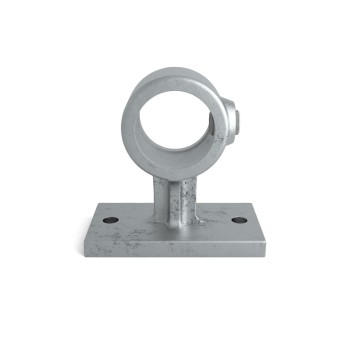

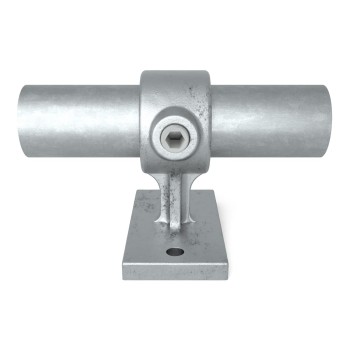

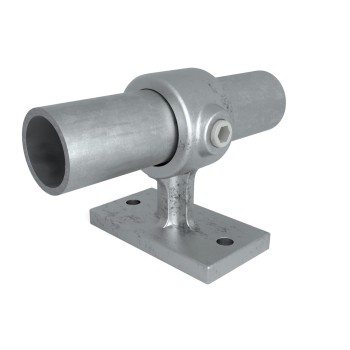

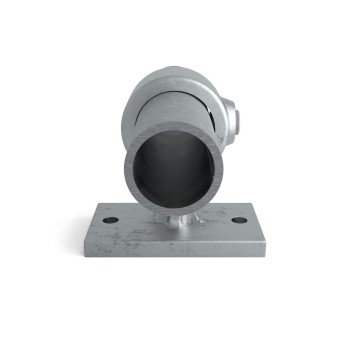

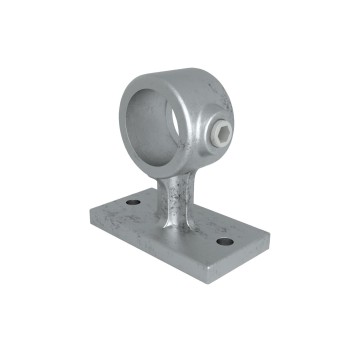

Handrail wall bracket - Type 34C - 33,7 mm

Reference: 608034C

€3.67
€3.08 tax excl.
In Stock
Quantity Discount You save Buy
50 5% Up to €9.18
100 7.5% Up to €27.53
150 10% Up to €55.05
200 15% Up to €110.10

Volume discounts

Quantity Unit discount You Save
50 5% Up to €9.18
100 7.5% Up to €27.53
150 10% Up to €55.05
200 15% Up to €110.10
Quantity

Often used to attach to walls, as a positional wall fixing for structures, or to attach kick-plates to uprights. The tube cannot be joined within the fitting.

Equivalent in the Kee Safety (Kee Klamp): Kee Klamp 70-6

Equivalent in the Interclamp / Key Clamp: 143

KLEMP Central Support Pipe Connector/Fitting, handrail Bracket/Wall Bracket, malleable cast Iron, hot-dip Galvanized, incl. Screws/Straight Typ 34C - 33,7 mm / 1"

  • Often used to attach to walls, as a positional wall fixing for structures, or to attach kick-plates to uprights. The tube cannot be joined within the fitting.

  • SUPPLY: 1x Handrail wall bracket - Type 34C - 33,7 mm, Size C - 33,7 mm / 1", Weight: 0,36 kg.Type: Handrail bracket, Material: Cast iron (ASTM A197 KTH350-10), Surface: Galvanized, Production Norm: ASTM A197, KTH350-10, Material Screw: Stainless steel 410, BSP thread (ISO228/1), Screw size: 1/4” x 12,5 mm, Size in inches: 1”, Colour: Silver, Equivalent in the Kee Safety (Kee Klamp)Kee Klamp 70-6

  • HIGH QUALITY TÜV Rheinland seal of approval for design, safety, quality - the pipe connectors have been approved by TÜV - a leading, independent research institute in Europe. Optimal corrosion protection - durable, stable and universally applicable

  • MULTIFUNCTIONALITY Various application possibilities. Free design of any constructions without welding or thread cutting, e.g. for shelves, railings, outlets, exhibition stand construction, play facilities, steel structures, handrails, railings, scaffolding. With pipe connectors it is easy and inexpensive to build diverse constructions. Check out our inspirations: https://pinterest.com/Tubefittings_eu/


Equivalent in the Kee Safety (Kee Klamp): Kee Klamp 70-6

Equivalent in the Interclamp / Key Clamp: 143

Data sheet

Size mm
C (33.7 mm)
Colour
Silver
Size inches "
1
Material
Cast iron (ASTM A197 KTH350-10)
Surface
Galvanized
TÜV Certificates
Yes
Weight
0,36
Amount in box
55
Equivalent in the Kee Safety (Kee Klamp)
Kee Klamp 70-6
Equivalent in the Interclamp / Key Clamp
143
Type
Handrail bracket
Material of the screw
Stainless steel 410
Kind of screw thread
BSP thread (ISO228/1)
Bolt size
1/4" x 12,5 mm
Production Norm
ASTM A197, KTH350-10
